PANELS
Need plywood, OSB, or particle board sheathing panels? Explore our sheathing panel material list for various types and grades.
Find consistency and versatility
We stock a variety of plywood, OSB, and particle board goods in different grades and sizes. Our panels are versatile, strong, and can be pressure treated to increase service life. Whether you need sheathing and panels for roofing, walls, cabinets, or an industrial application, Trio has the products for you.
Explore our plywood, OSB, and particle board options, and learn more about panel grading below. If you do not see what you need, reach out to us. We are here to place your building material needs above all else.
DEFINING THE GRADES
Have you ever wondered what all the A B C D has to do with plywood grades? It truly is pretty simple, but unless someone has taken the time to explain, it can be confusing. Think of it like your kid’s report card: we all like the A’s. The grades represent the veneer appearance before any repairs are made. The following are the grades of veneers.
The first letter of the grade represents the face, which is your usable or best side of the panel.

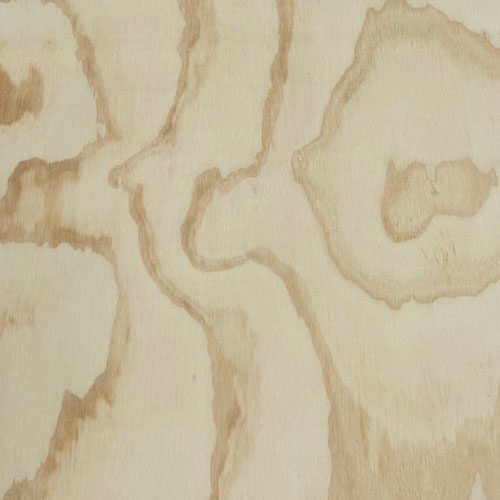

A
Best grade and most expensive.
This grade is used when you need a smooth, paintable surface. Not more than 18 neatly made repairs.

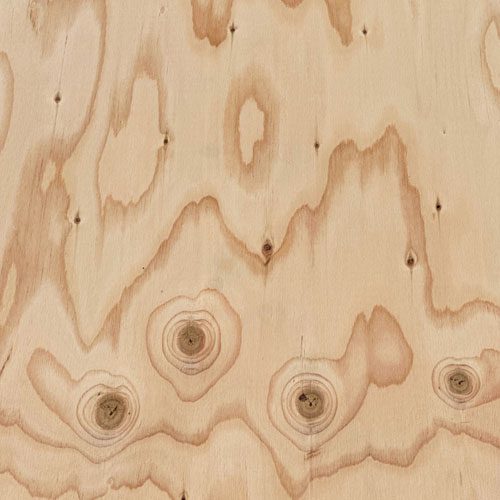

B
Solid Surface
Repairs are allowed and tight knots up to 1 inch across the grain and some minor splits are allowed.

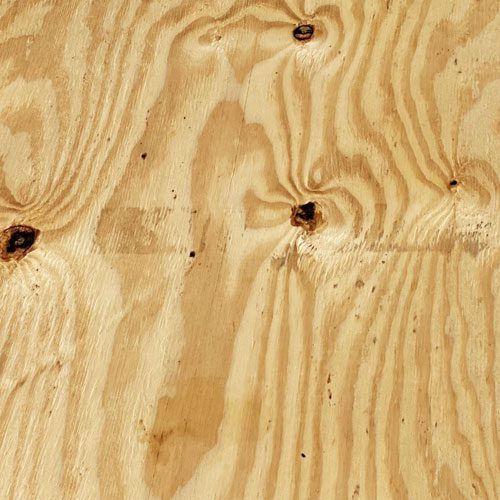

C
Tight knots to 1-1/2 inches, repair allowed
Discoloration and sanding defects are allowed as long as it does not impair the strength. Some knot holes allowed.

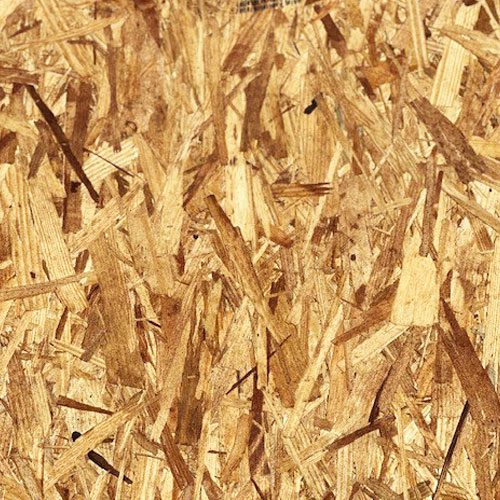

OSB
Oriented Strand Board
Also known as waferboard: made of compressed wood strands.
Which is stronger, Plywood or OSB?
In the applications for which they are manufactured, the two products are basically interchangeable. Although different in the way they are made and appear, plywood and OSB are manufactured according to the same performance standard criteria.
Are You Looking for a Particular Product?
Want more information about our building materials? We are here to help however we can.
Specs & Dimensions
| Dimension | Description |
|---|---|
| 11/32, 15/32, 19/32, 23/32 | RATED SHEATHING (AKA CDX) DF & SYP |
| 11/32, 15/32, 7/16, 19/32, 23/32 & 1-1/8 | OSB |
| 19/32, 23/32, 1-1/8 | STURDIFLOOR T&G DF & SYP |
| 19/32, 23/32 & 1-1/8 | OSB T&G |
| 1/4, 11/32, 15/32, 19/32, 23/32 | AC SANDED |
| 15/32, 19/32, 23/32 | CCPT&S |
| ¾ x 49x97 | PARTICLE BOARD SHOP |
| 1/8 & 1/4 X4X8 | TEMPERED HARDBOARD |
| — | FIRE TREATED PLYWOOD AVAIL |
| — | BORATE TREATED PLYWOOD AVAIL |
| — | ACQ TREATED PLYWOOD AVAIL |
Download Resources
Committed to being a valuable resource for you
The products we sell are used in several applications and across several industries. Following is a guide with product specifications, resources, and industry links that we hope you will find helpful.
If there is anything that you would like us to add to this list, please contact us and let us know. We are committed to being a valuable resource for you and to helping you succeed.
Western Wood Products Association (WWPA) is a grading agency for lumber and provides free resources where you find product and technical support literature, grade rules, and design tools used to support design, specification, and application of Lumber.
